Used 2024 RAMCO MKD24EWR | Washers

Description

***NEVER USED***

FOR SALE: RAMCO Immersion Parts Washing System. This was $127,000 new.

Model: MKD24EWR
Condition: Industrial-grade, automated ultrasonic wash & rinse system

Overview

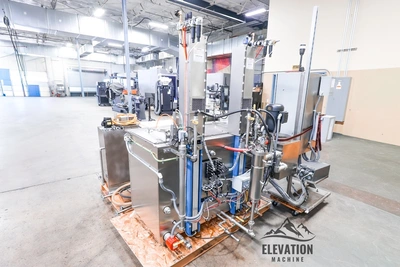

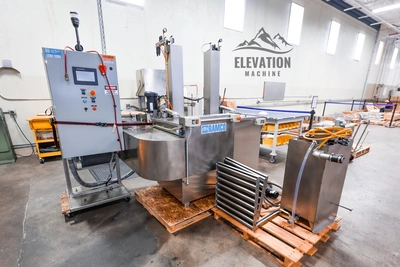

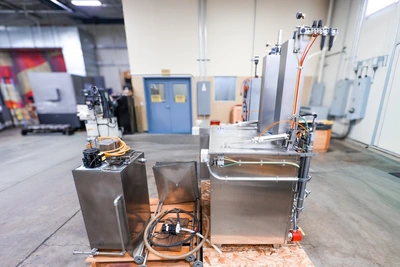

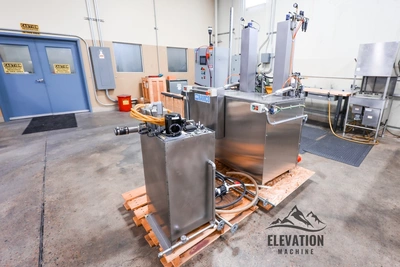

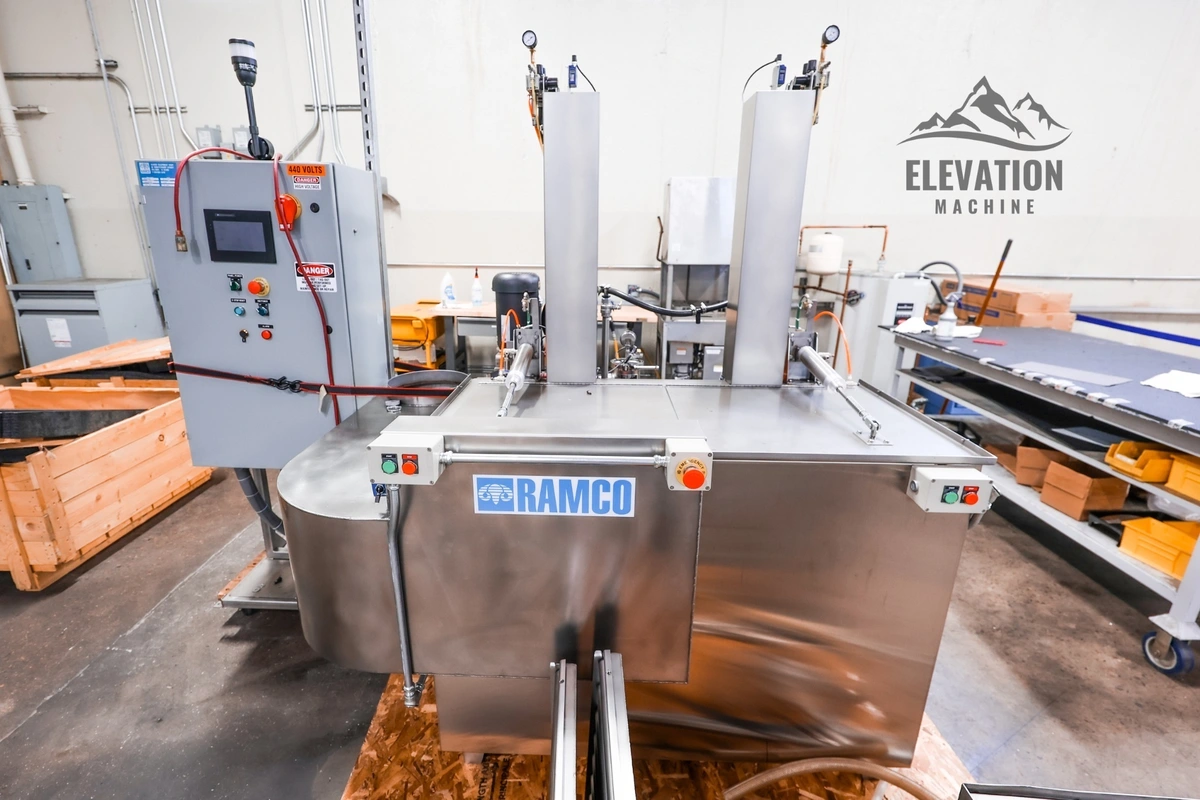

The RAMCO MKD24EWR is a high-performance immersion parts washing system featuring heated ultrasonic wash and rinse stages with automatic loading/unloading. Its patented Dynamic Flow Combination uses an integral elevator to continuously move parts through the processing zone, delivering superior cleaning, faster cycle times, and consistent results.

Key Features

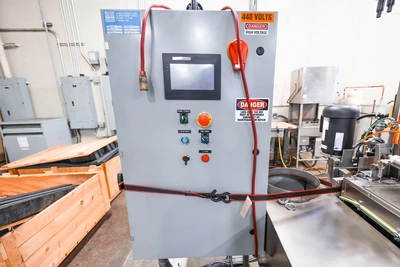

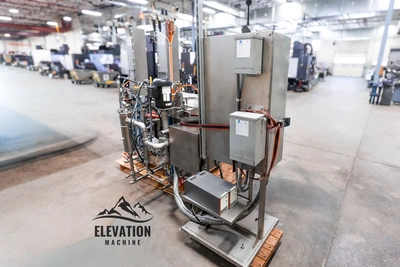

• Automated PLC/HMI controls (Automation Direct)
• Integral transport elevator for continuous part movement
• Dynamic Flow Combination for superior wash, rinse, and drying results
• Ultrasonic cleaning with sweep frequency (38–42 kHz)
• Alternating ultrasonic, turbulation, filtration, and hydraulic flushing cycles
• Automatic powered covers with lockout
• Load & unload roller conveyor with drip pan and legs

Construction & Capacity
• 316 stainless steel construction (all wetted areas)
• Stainless steel legs, guards, and panels
• 80-gallon solution capacity per stage

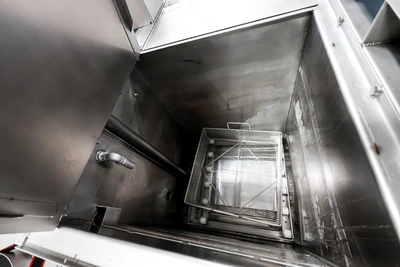

• Work area: 22” x 21” x 18”
• Load capacity: 150 lbs
• Pneumatic multiport stroke agitation
• NEMA 12 lockout/tagout main disconnect

⸻

Stage 1 – Agitating Ultrasonic Turbo Wash

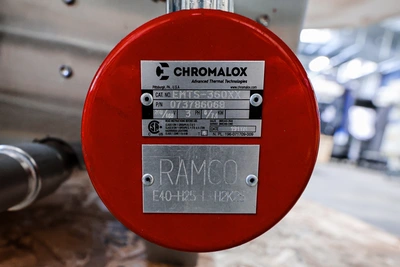

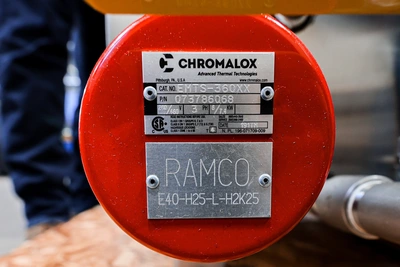

• Electric heat: 6000W, 440V / 3PH / 60Hz

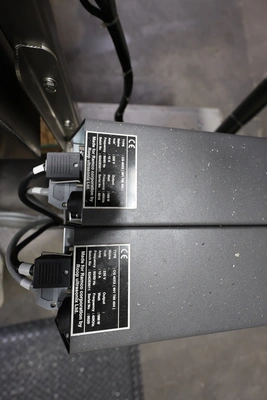

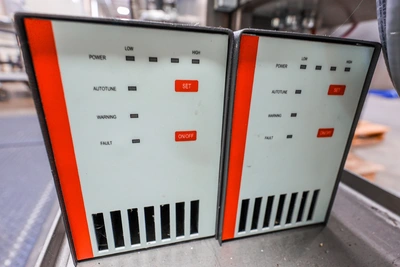

• Ultrasonic system:
• 1500W, 40 kHz (18.5 W/gal)
• Dual cascading timing system
• Multiple rollover timing system
• OR-6CVS oil removal system with automatic water makeup
• Turbo/filter system:

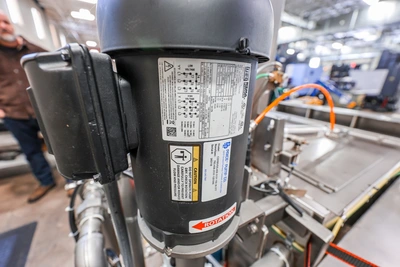

• 1.5 HP vertical immersion pump
• 4” x 6” filter housing
• Split roller conveyor
• Digital temperature control via PLC
• Low solution level protection
• Lip vent exhaust (no blower)

⸻

Stage 2 – Agitating Ultrasonic Rinse
• Electric heat: 6000W, 440V / 3PH / 60Hz
• Ultrasonic system:
• 1500W, 40 kHz (18.5 W/gal)
• Dual cascading timing system
• Multiple rollover timing system
• Split roller conveyor
• Digital temperature control via PLC
• Low solution level protection
• Overflow weir with mixing piping

⸻

Ideal for: Precision parts cleaning, industrial manufacturing, aerospace, automotive, and high-reliability component processing.
