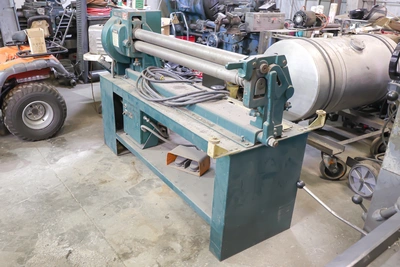

Used TENNSMITH SR48P | Plate Bending Rolls including Pinch

Description

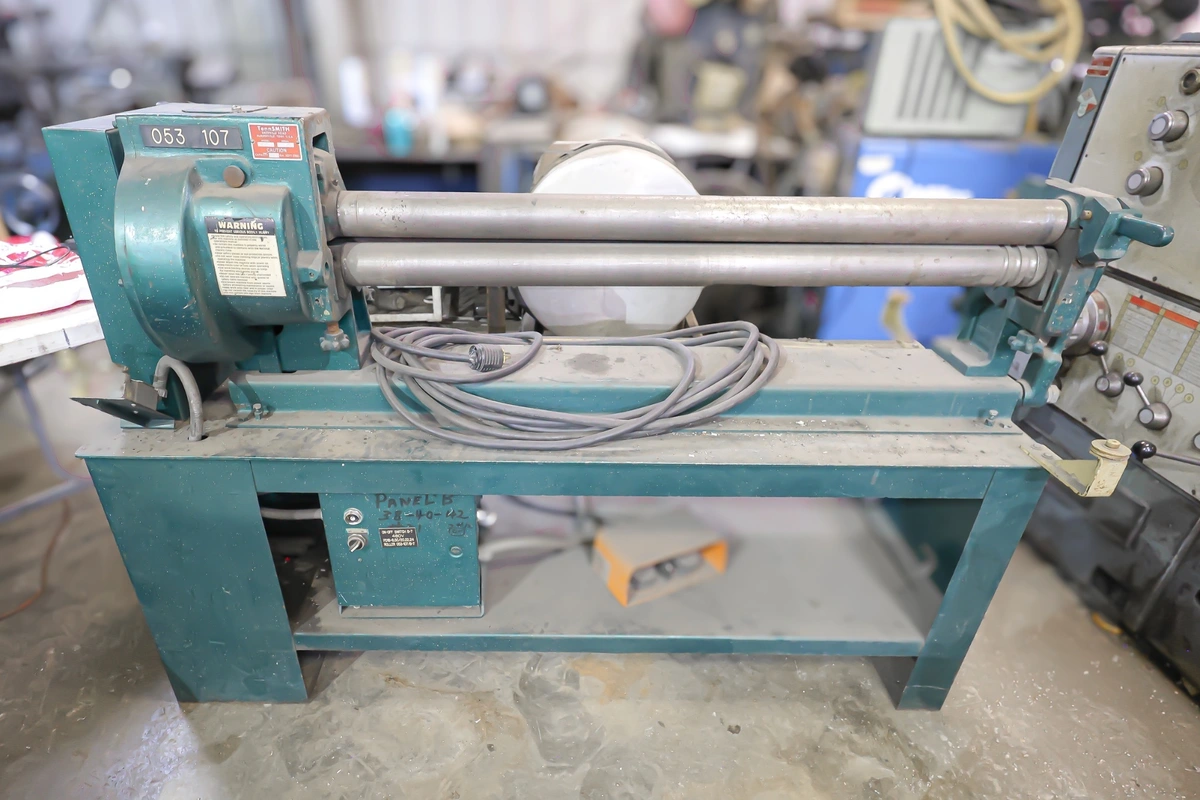

Tennsmith SR48P powered slip roll, perfect for forming cylinders, curves, and rolls from sheet metal. Designed for shop efficiency and precision, this machine is ideal for HVAC, ductwork, tanks, hoppers, and other curved metal applications. Heavy-duty construction ensures long-lasting performance.

Key Features & Specifications:
• Roll Capacity: Up to 16 gauge (≈1.6 mm) mild steel
• Maximum Sheet Width: 49″ (≈1244 mm)
• Roll Diameter: 3″ (≈76 mm) precision-ground steel
• Minimum Forming Radius: ~1‑1/2″ (≈38 mm)
• Wire Grooves: 3/8″, 1/2″, 5/8″ for easy edge alignment
• Gearing: 4:1 torque ratio for smooth and consistent rolling
• Roll Speed: ~22 RPM (~17.3 sfpm)
• Motor: ¾ HP electric, 3-phase (230/440 V) with forward/reverse foot pedal and brake
• Safety Features: Foot pedal with forward/reverse & electromagnetic brake, safety cables to prevent over-roll
• Construction: Heavy-duty steel frame with precision-ground rolls
• Overall Size & Weight: 77″ × 29″ × 50″, ~1100 lbs (500 kg)
