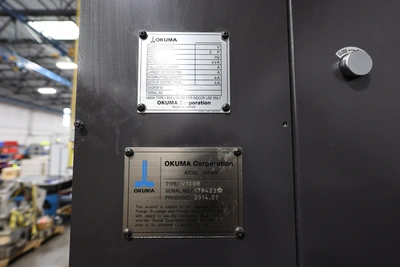

Used 2014 OKUMA V100R | CNC Lathes
Have one to sell?
$179,000.00 USD
ConditionUsed
1 available

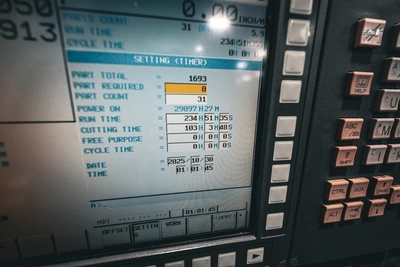

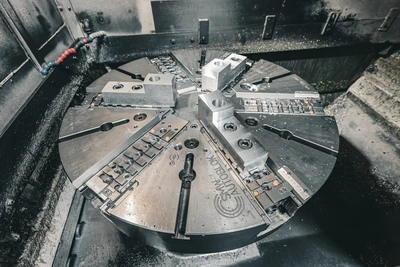

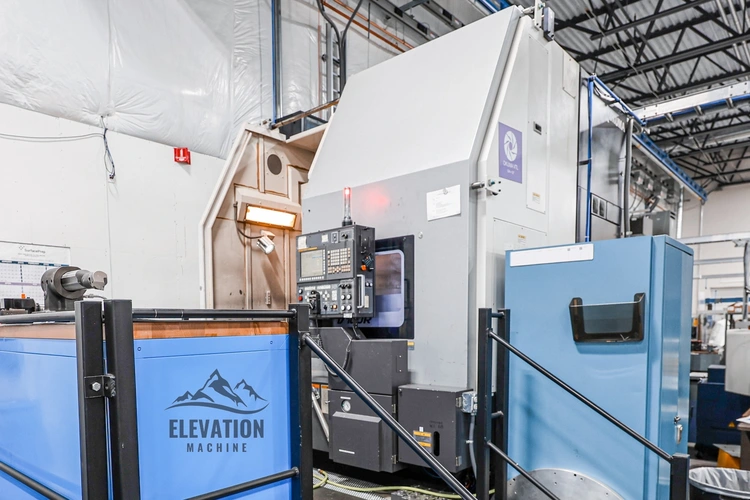

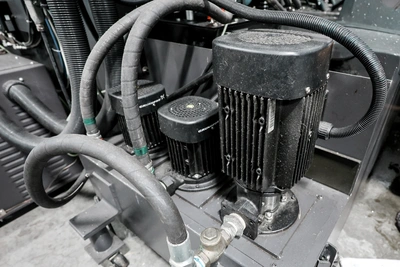

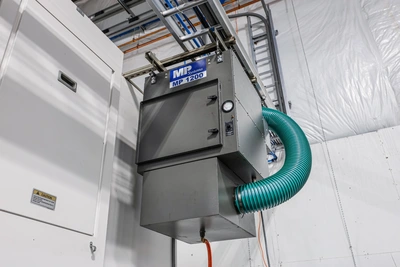

We are offering a 2014 Okuma V100R vertical turning lathe with only 103 cutting hours! This machine is equipped with an SMW Autoblok Chuck, Fanuc 31iB controller, chip conveyor, MP Systems mist collector, and 1000psi high pressure pump. It will also come with the custom built mezzanine.
The V100R is a high-precision, heavy-duty CNC machine ideally suited for large, odd-shaped or thin-walled workpieces. Built with Okuma’s signature rigidity, this V100R features a box-type base and column, which deliver exceptional structural stability. The headstock is designed with a flange construction to reduce thermal deformation and vibration, enabling sustained accuracy even during heavy cuts.

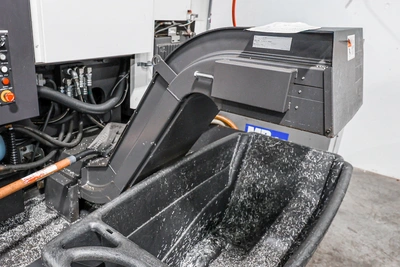

The base allows smooth chip flow, and a chip conveyor is included (optional mounting for side or rear). Operated via an ergonomic layout: front-skirt panel for close work plus a swiveling pendant for operator comfort.
Spec
Value
Max Cutting Diameter
Ø 39.4 in (Ø 1,000 mm)
Max Cutting / Turning Length
35 in (890 mm)
Max Swing (over bed)
Ø 49.21 in (1,250 mm)
Spindle Speed
13 – 1,250 min⁻¹
Spindle Power
60 / 50 hp (or 45 / 37 kW)
Rapid Traverse (X / Z)
78.74 fpm (≈ 24 m/min)
Motor / Power (Lathe)
30 / 22 kW (depending on rating)
Control
Fanuc 31iB
Turret / Tool Stations

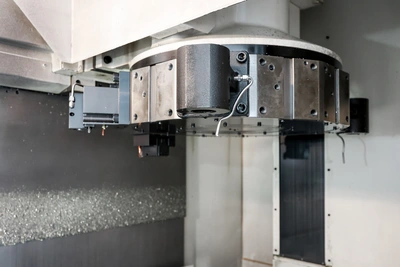

12-station V12 turret
Chuck / Table Diameter
Example: 36″ or 40″ options (varies; previous units have 36″ or 40″)
X-Axis Travel
~22.2 in (depending on configuration)
Z-Axis Travel
~35.04 in
Machine Weight
~30,000 lb (varies by spec)
