Used CLARK TMX 15S | Misc Forklifts

Description

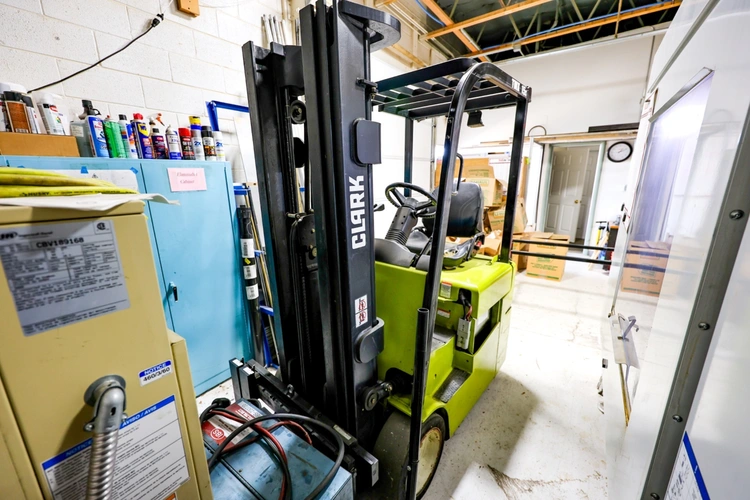

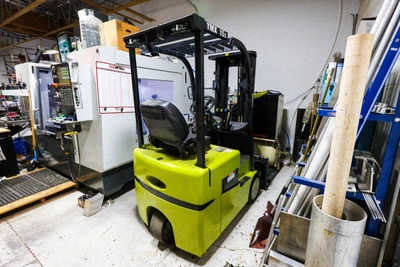

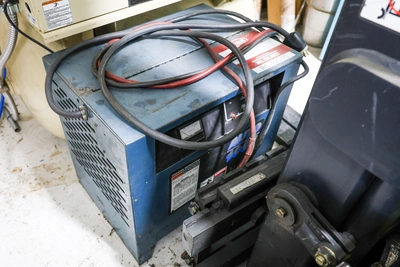

CLARK TMX 15S forklift for sale. It is in excellent shape and will come with the charger that is pictured.

***We are lining up buyers for this item but this must stay at the shop until all other equipment being sold is gone.***

The Clark TMX 15S is a compact, reliable, and energy-efficient electric forklift designed to deliver maximum performance in warehouse and distribution environments. Built with Clark’s reputation for durability, this model combines precision handling with low operating costs.

Key Features:
• Model: Clark TMX 15S
• Power Source: Electric – zero emissions, low maintenance
• Design: Compact chassis for maneuverability in tight spaces
• Performance: Strong lift capacity with smooth and quiet operation
• Operator Comfort: Ergonomic controls and spacious operator compartment
• Safety: Enhanced visibility and stability for safe, efficient handling

Specifications
Load Capacity (Rated)
3,000 lbs (≈ 1,500 kg) at a 24 in load center
Voltage / Power System
36-Volt Electric AC System
Mast and Lift Height Options
3-Stage Mast; Standard Free Lift ≈ 59 in; Maximum Fork Height up to ≈ 188 in (with high mast option)
Turning Radius, Outside
≈ 53.4 in
Overall Dimensions
• Width: ~ 40.25 in • Height (Overhead Guard / Mast Lowered): ~ 83.0 in • Length to fork face: ~ 69.5 in
Load Center
24 in standard; some spec sheets use 19.69 in for alternate ratings.
Travel Speed (Loaded / Unloaded)
~ 9.3-9.4 mph (≈ 15.0 km/h) with load.
Lift / Lower Speed
• Lift speed (full load): about 69 fpm (feet per minute) • Lowering speed (full load): about 77 fpm
Tires / Wheels
Cushion tires; 2 front drive wheels, 1 rear wheel (“three-wheel design”)
Operating / Truck Weight (without battery)
~ 7,248.8 lbs
Ground Clearance (under wheelbase)
~ 3.25 in
Right-Angle Stack / Aisle Width Reference
Right-Angle Stack ≈ 67.8 in (standard forks + clearance)
