Used PIRANHA PII35 | Ironworkers

Description

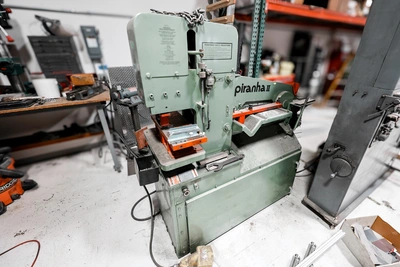

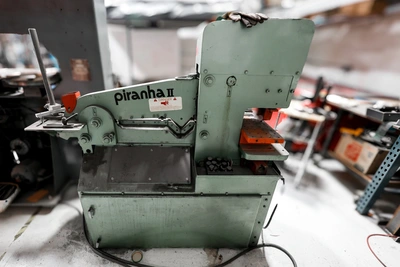

The Piranha PII-35 is a heavy-duty dual-operator ironworker designed for versatility and productivity in fabrication and repair shops. With a 35-ton punching capacity and multiple workstations, it is capable of punching, shearing, notching, and coping in one compact, reliable unit. Dual controls allow two operators to work simultaneously, increasing throughput and efficiency.

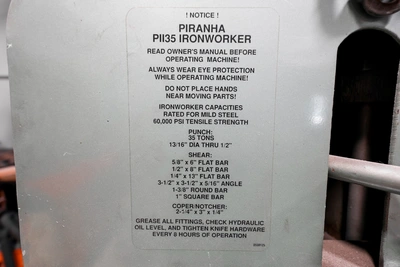

Specifications:
• Punching Capacity: 35 tons – up to 13/16″ diameter through 1/2″ plate
• Flat Bar Shear: 5/8″ × 6″, 1/2″ × 8″, 1/4″ × 13″
• Angle Shear: 3-1/2″ × 3-1/2″ × 5/16″
• Coper/Notcher: approx. 2-1/4″ × 3″ × 1/4″
• Power Requirement: 230V, 3-phase
• Approx. Weight: 2,500 lbs
• Dimensions (approx.): 72″ L × 52″ W × 75″ H

Features:
• Dual-operator design with controls at multiple stations
• Multiple workstations for punching, shearing, and notching
• Compact footprint with rugged frame construction
• Backed by strong parts availability and service support from Piranha

Condition:
Clean, fully functional, and ready for operation. Well-suited for fabrication shops, maintenance departments, and structural steel applications.
