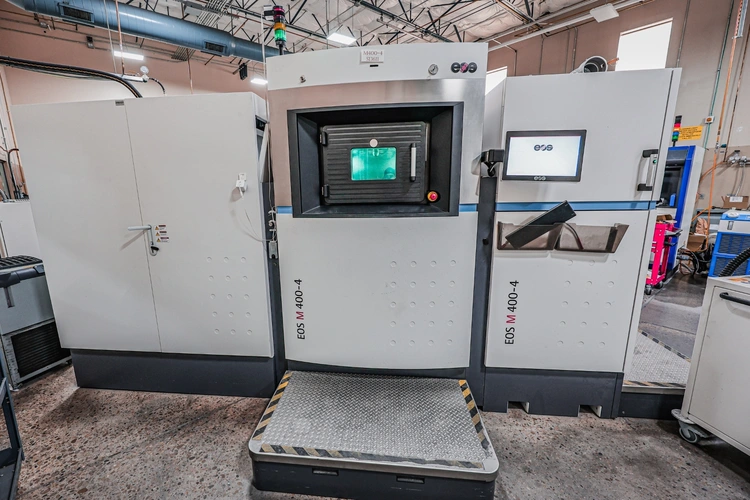

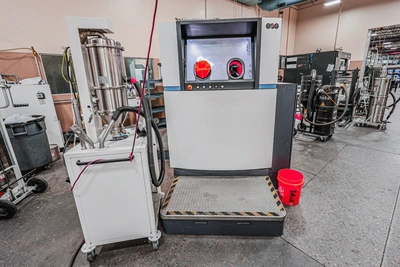

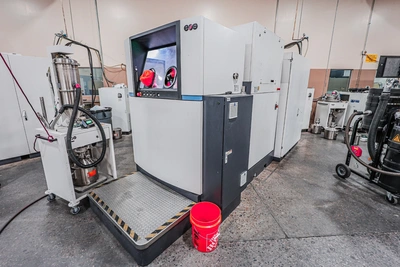

2018 EOS M 400-4 L-pbf 3D Printer for sale. This machine comes with a powder conveying system/hopper, Sieve station, and chiller. It was recently PM’d and upgraded to Windows 10.
From EOS:
Ultra-Fast, Ultra-Productive: Our Flagship Four-Laser Machine
With four 400-watt lasers and a 400 x 400 x 400 mm build volume, the EOS M 400-4 is the ultimate productivity platform for industrial applications.
Productivity
With a build volume of 400 x 400 x 400 mm and four lasers, the EOS M 400-4 platform achieves up to four-times higher productivity, making it perfect for industrial applications. Four precise 400-watt fiber lasers work over an area of 250 x 250 mm each, with 50 mm overlap.
Automation
With its intuitive user interface, flexible software tools and diverse accessories, the system meets every usage requirement of an industrial production environment. Highly automated procedures and processes guarantee ease of operation.
Quality & Versatility
A broad portfolio of materials is available, from light metals to stainless steel, tool steels and super alloys. Any process from the EOS M 290 can be transferred to the EOS M 400-4 to achieve equivalent part properties.
BUILD VOLUME
400 x 400 x 400 mm (15.7 x 15.7 x 15.7 in)
LASER TYPE
Yb-fiber laser; 4 x 400 W
PRESICION OPTICS
4 F-theta-lens(es); 4 High-speed scanner(s)
SCAN SPEED
up to 7.0 m/s (23.0 ft/s)
FOCUS DIAMETER
approx. 90 µm (0.00354 in)
POWER SUPPLY
3 x 50 A
POWER CONSUMPTION
max. 45.0 kW / typical 22.0 kW
COMPRESSED AIR SUPPLY
7 Bar; 20 m³/h (102 psi; 706 ft³/h)
MACHINE DIMENSIONS
5140 x 2490 x 2625 mm (202.4 x 98.0 x 103.3 in)
RECOMMENDED INSTALLATION SPACE
min. 7500 x 6000 x 3300 mm (295.3 x 236.2 x 129.9 in)
WEIGHT
approx. 4900 kg (10803 lbs)
SOFTWARE
EOS BUILD , EOS SMART MONITORING , EOS SYSTEM SUITE
