2016 EOS M 400-1
Have one to sell?
$299,000.00 USD
ConditionUsed
1 available

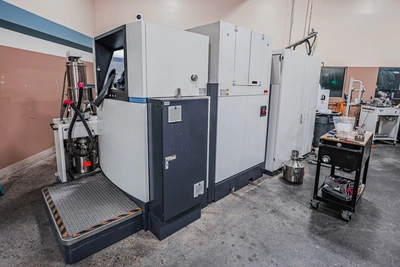

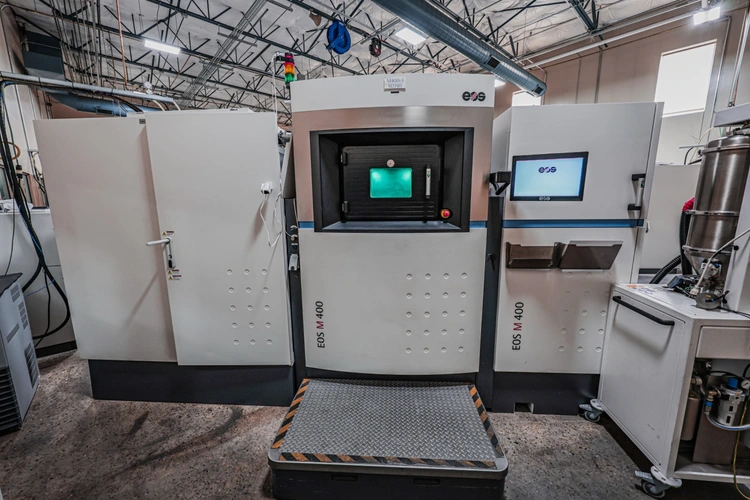

2016 EOS M 400-1 L-pbf 3D Printer for sale.
Exceptional Quality at High Volume
Ideal for serial manufacturing of large metal parts, the EOS M 400 delivers repeatable excellence.
Highly Productive
1000-watt laser power increases productivity with higher build rates and thicker layers. Ideal for serial manufacturing of large metal parts.
Easy to Use
Coating both sides with powder material reduces production downtime. A circulating air filtering system with automatic cleaning means fewer filter changes and longer service life.
Broad Portfolio of Materials
A comprehensive collection of materials is available, from light metals to stainless steel, tool steels and super alloys.

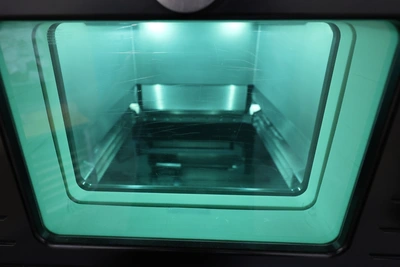

BUILD VOLUME
400 x 400 x 400 mm (15.7 x 15.7 x 15.7 in)
LASER TYPE
Yb-fiber laser; 1 x 1000 W
PRESICION OPTICS
1 F-theta-lens(es); 1 High-speed scanner(s)
SCAN SPEED
up to 7.0 m/s (23.0 ft/s)
FOCUS DIAMETER
approx. 90 µm (0.00354 in)
POWER SUPPLY
1 x 50 A
POWER CONSUMPTION
max. 50.2 kW / typical 16.2 kW
COMPRESSED AIR SUPPLY
7 Bar; 20 m³/h (102 psi; 706 ft³/h)
MACHINE DIMENSIONS
4181 x 1613 x 2355 mm (164.6 x 63.5 x 92.7 in)
RECOMMENDED INSTALLATION SPACE
min. 6500 x 6000 x 3300 mm (255.9 x 236.2 x 129.9 in)
WEIGHT
approx. 4635 kg (10218 lbs)
SOFTWARE
EOS BUILD , EOS SYSTEM SUITE
