2014 EOS M290
Have one to sell?
$192,000.00 USD
ConditionUsed
1 available

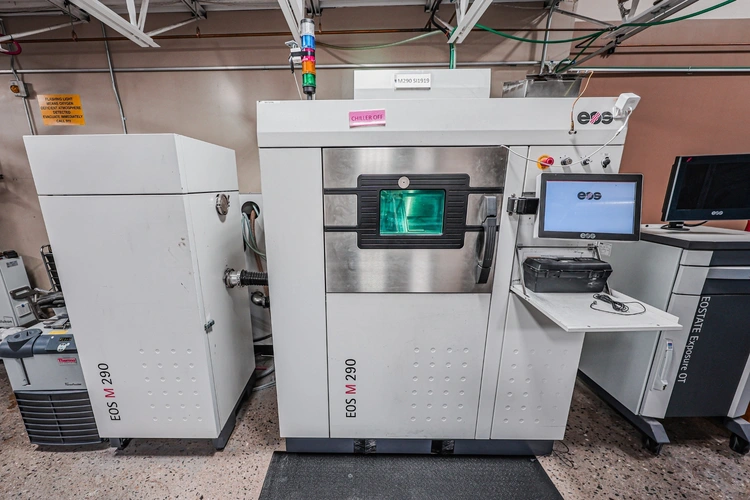

2014 EOS M290 L-PBF 3D printer for sale in excellent condition. This machine is equipped with a single 400w laser.
From EOS: Mid-Sized and Multi-Talented, the Industry Standard for Qualified 3D Printed Metal Parts
Robust system design and powerful 400-watt fiber laser deliver reliable high performance, day in and day out.
Reproducible Part Quality
The exceptionally high beam quality of the laser spot and the excellent detail resolution are ideal for producing highly complex components with homogeneous properties.
Broad Portfolio of Materials
With the most extensive range of validated materials and processes available on the market, all customer needs are covered.
Comprehensive Quality Management
The comprehensive monitoring suite enables quality assurance of all production- and quality-relevant data in real time.
BUILD VOLUME
250 x 250 x 325 mm (9.8 x 9.8 x 12.8 in)
LASER TYPE
Yb-fiber laser; 1 x 400 W
PRESICION OPTICS
1 F-theta-lens(es); 1 High-speed scanner(s)
SCAN SPEED
up to 7.0 m/s (23.0 ft/s)
FOCUS DIAMETER
approx. 100 µm (0.00394 in)
POWER SUPPLY
1 x 32 A
POWER CONSUMPTION
max. 8.5 kW / typical 2.4 kW
COMPRESSED AIR SUPPLY
7 Bar; 20 m³/h (102 psi; 706 ft³/h)
MACHINE DIMENSIONS
2500 x 1300 x 2190 mm (98.4 x 51.2 x 86.2 in)
RECOMMENDED INSTALLATION SPACE
min. 4800 x 3600 x 2900 mm (189.0 x 141.7 x 114.2 in)
WEIGHT
approx. 1250 kg (2756 lbs)
SOFTWARE
EOS BUILD , EOS SMART MONITORING , EOS SYSTEM SUITE
Materials & Processes
The EOS M 290 has the most extensive range of validated
materials and processes on the market. EOS metal materials
are designed specifically for DMLS and are quality controlled.
EOS processes are validated ensuring consistent and repeatable
part quality. Explore below which metal materials and
processes are compatible with the EOS M 290.
