X-Axis Travel
17.7"
Y-Axis Travel
11.8"
Z-Axis Travel
12.6"
Control
MMGW-S6
U/V Axis Travel
3.97" x 3.97"
Degree Taper Cutting
15 at 4"
Inside Tank Dimensions
33.5" x 28.3"
Power Requirement
200-230/3/60
Wire Diameters
.004" - .012"
Wire Spool Size
10 Kg
Maximum Workpiece Dimensions
33.5" x 28.3" x 12.6"
Maximum Workpiece Weight
1,764 Lbs
Table Size
27.9" x 22.0"
Tank Size
34.25" x 29.72" x 15.9"
Required Floorspace
86" x 114" x 89"
Machine Weight
9,100 Lbs
FEATURES

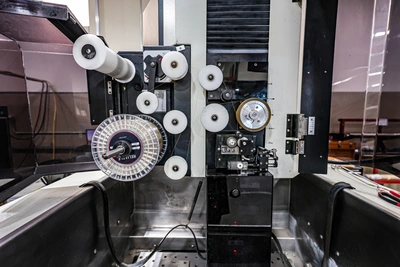

Auto Wire Threading

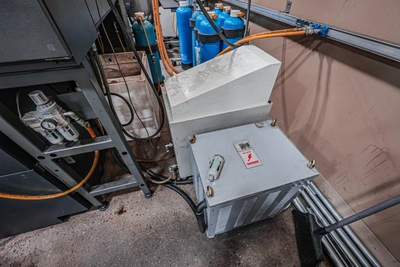

Chiller
Rotary Encoder Glass Scale Feedback

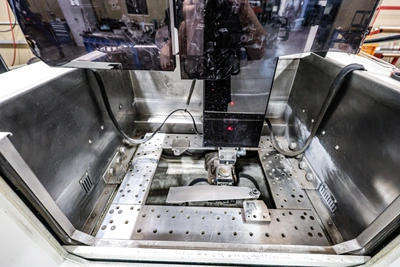

Submerged Cutting Capability
Ethernet Connection (RS232C)
MGW-S6 CNC Control
