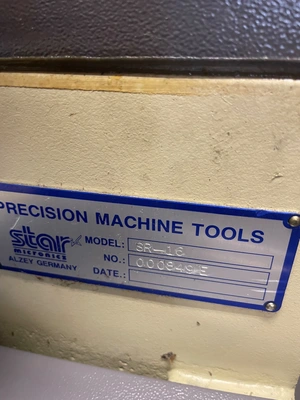

STAR SR-16 with only 4108 hours!
Have one to sell?
$11,000.00 USD
ConditionUsed
1 available

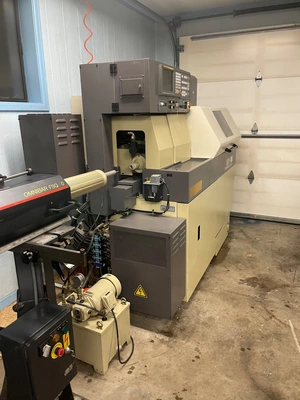

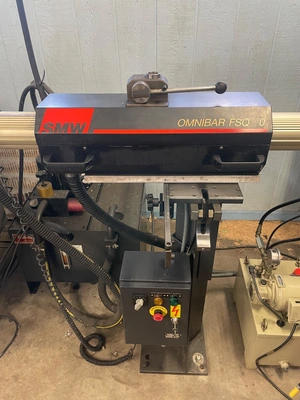

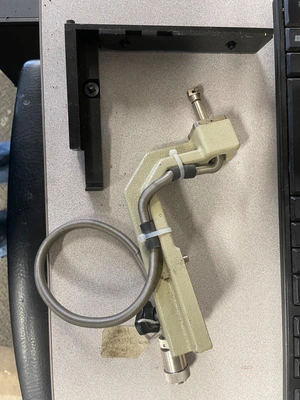

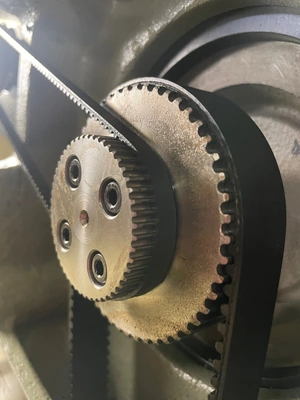

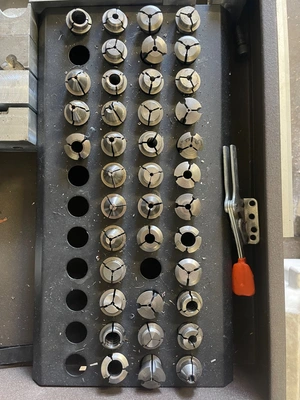

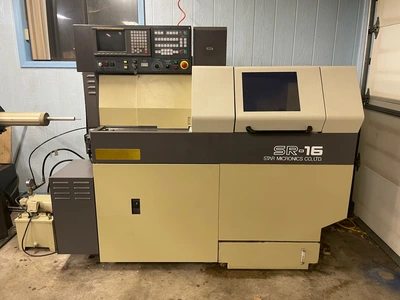

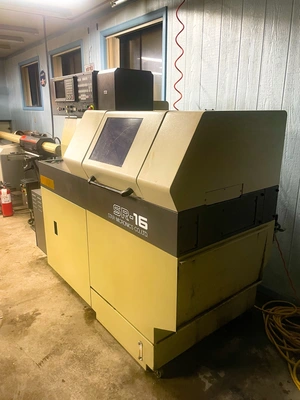

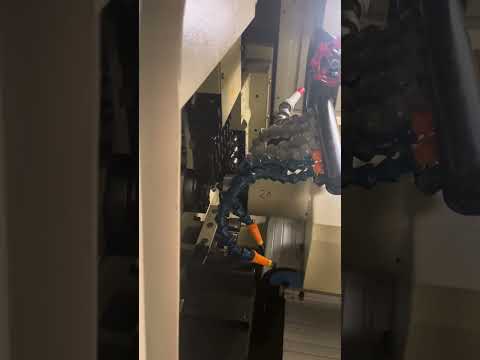

Pristine 1996 STAR SR-16 for sale with only 4,108 hours! This machine is in excellent shape both inside and out and was meticulously maintained. Make sure to watch the attached YouTube video. The pictures of the belts show that they are even in near new condition. This machine was used in a prototype shop and only had 1000 hours on it when the current owner bought it. It was then used very lightly to make small orders of earrings. The live tooling was rarely used as most parts required turning only. It comes with an SMW Omnibar FSQ bar feeder, all of the collets and guide bushings pictured, the tool setter (pictured), and the controller has the upgraded 40kb of memory on the main spindle. It can also come with 40 gallons of hangsterfers hard cut NG oil to fill the machine. It is ready to start making parts!
**This equipment is being sold as is and has no guarantees or warranty. Information is accurate to the best of our knowledge but it is up to the buyer to verify all specs and claims. Shipping is not included.**
Approx. Shipping Weight: 5,000 Lbs.
Approx. Shipping Dimensions: 96" L × 60" W x 72" H Loading Fee: Rigging Required

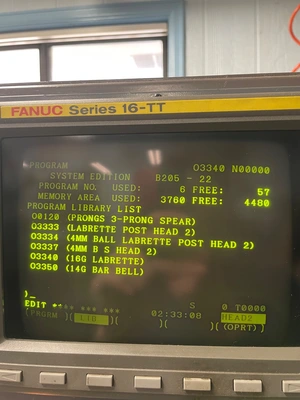

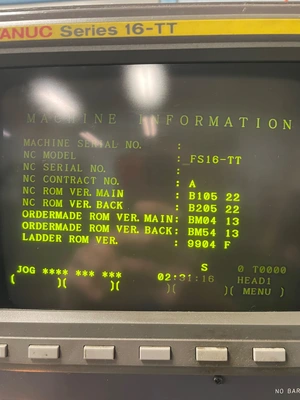

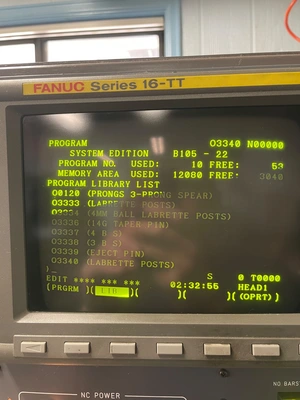

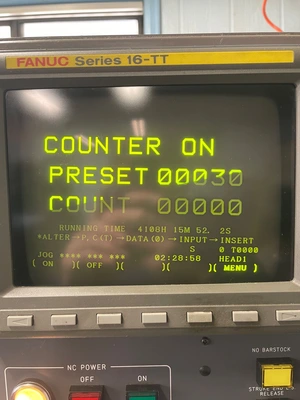

Control: Fanuc 16-TT
Max Turning Diameter: 16mm (5/8")
Max Head Stock Stroke: 205mm (8")
Max Drilling Capacity: Stationary 8mm (5/16")
Max Drilling Capacity: Power Driven 5mm (3/16")
Max Tapping Capacity: Stationary M8 x P1.25
Max Tapping Capacity: Power Driven M5 x P0.8
Max Milling Capacity: 10mm (3/8")
Max Die Cutting Capacity: M8 x P1.25
Max Slotting Capacity: 1.5mm x 4mm
Spindle Speed: 10,000 RPM
Spindle Bore: 20mm (49/64")
Spindle Indexing: 15°
Sub-Spindle Diameter: 16mm (5/8")
Max Part Length for Front Ejection: 80mm (2 1/8")
Max Part Projection Length: 30mm (1 5/32")
Sub-Spindle Speeds: 6,000 RPM
Number of Turning Tools: 6
Number of Power Driven Tools: 3
Power Driven Spindle Speed: 5,000 RPM
Tool Shank Size: 12 x 95-120
Coolant Tank Capacity: 100L
